Design Pattern: Observer Pattern

Summary

Pattern NameObserver Pattern
Pattern TypeBehavioral Pattern
ScopeObject
Other NamesDependents
Publish/Subscribe (pub/sub)
Publish/Listener
TaglineNotify state change to all dependent objects
Use casesWhen we want to implement
Publish-Subscribe of state change
between objects
Related PatternsMediator
Singleton
Difficulty LevelMedium
Implementations

Definition

Observer pattern deals with state change between related objects. When one object depends on any state of another object, then when the state changes the dependent object needs to be notified. Observer pattern enables the dependent objects to subscribe to the state change of the subject-object.

Observer pattern defines one-to-many dependencies between objects. Many observer objects can subscribe to the subject and automatically be notified of the change in subject. When any observer does not have any interest in the subject, they can unsubscribe from that subject.

Use Cases

Here are a few use cases of the Observer pattern-

  • When changes in one object, require changes in other objects.
  • When we do not know how many objects(subscribers) are impacted by the change in the subject.
  • When the subscribing objects need the ability to unsubscribe to the subject change.

Implementation

Observer pattern has 4 elements.

  1. Subject Interface: Interface for the concrete subject cl.
  2. Concrete Subject: class to which the observers subscribe.
  3. Observer Interface: Interface (or abstract class) for the observer classes.
  4. Concrete Observer: Classes that subscribe to the subject.

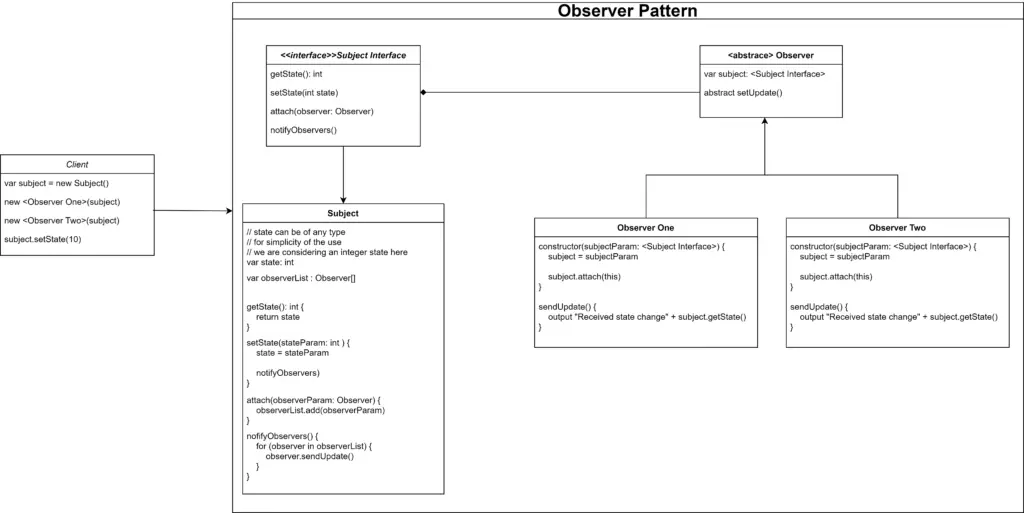

Take a look at the implementation diagram.

Follow the steps below to implement Observer pattern:

  1. Create an interface for the subject class. This interface needs to define functions to set & get the state, attach an observer to the subject, and a way to notify observers about the state change.
  2. Create a subject class.
  3. Store a list of observers in the subject class.
  4. When a subscriber subscribes to the subject, then add the object to the observer list.
  5. When the state is changed in the subject, then inform all the observers in the list.
  6. Create an interface for the observer classes.
  7. Create observer classes and implement the observer interface.
  8. In the observer constructor, take a subject-object as para. Save the subject in the observer, and call the subject to attach the method to add the observer to the observer list of the subject.
  9. Implement send update method, which the subject can call to and send the state updates.
  10. In the client, create a subject-object. create observers and pass the subject to them.
  11. After that whenever the state changes in the subject(using the setState), the observers will get the update.

Examples

Example #1: General Observer

Let’s take the example of a general observer implementation.

Subject

// Subject Interface

interface Subject

    getState(): int

    setState(state: int)

    attach(observer: Observer)

    notifyObservers()

end interface


// Subject Concrete Class

class ConcreteSubject implements Subject

    var state: int

    // Observer array
    var observerList: Observer[]

    method getState(): int
        return state
    end method

    method setState(stateParam: int)
        state = stateParam

        notifyObservers()
    end method

    method attach(observer: Observer)
        observerList.add(observer)
    end method

    method notifyObservers()
        for observer in observerList
            observer.sendUpdate()
        end for
    end method

end class

Observer

// Observer abstract class

abstract class Observer

    var subject: Subject

    abstract sendUpdate()

end class


// Observer implementation

class ObserverOne extends Observer

    constructor(subjectParam: Subject)
        subject = subjectParam

        subject.attach(this)
    end constructor


    method sendUpdate()
        output "Received in ObserverOne: " + subject.getState()
    end method

end class


class ObserverTwo extends Observer

    constructor(subjectParam: Subject)
        subject = subjectParam

        subject.attach(this)
    end constructor

    method sendUpdate()
        output "Received in ObserverTwo: " + subject.getState()
    end method

end class

Demo

Subject subject = new ConcreteSubject()

new ObserverOne(subject)
new ObserverTwo(subject)

output "Setting subject value to 10"
subject.setState(10)



output "Setting subject value to 999"
subject.setState(999)

Output

Setting subject value to 10
Received in ObserverOne: 10
Received in ObserverTwo: 10

-----------------------------

Setting subject value to 999
Received in ObserverOne: 999
Received in ObserverTwo: 999

Code Implementations

Use the following links to check Observer pattern implementation in specific programming languages.
